Cup Dispenser

This is on thingiverse as Post Mounting Cup Dispenser.

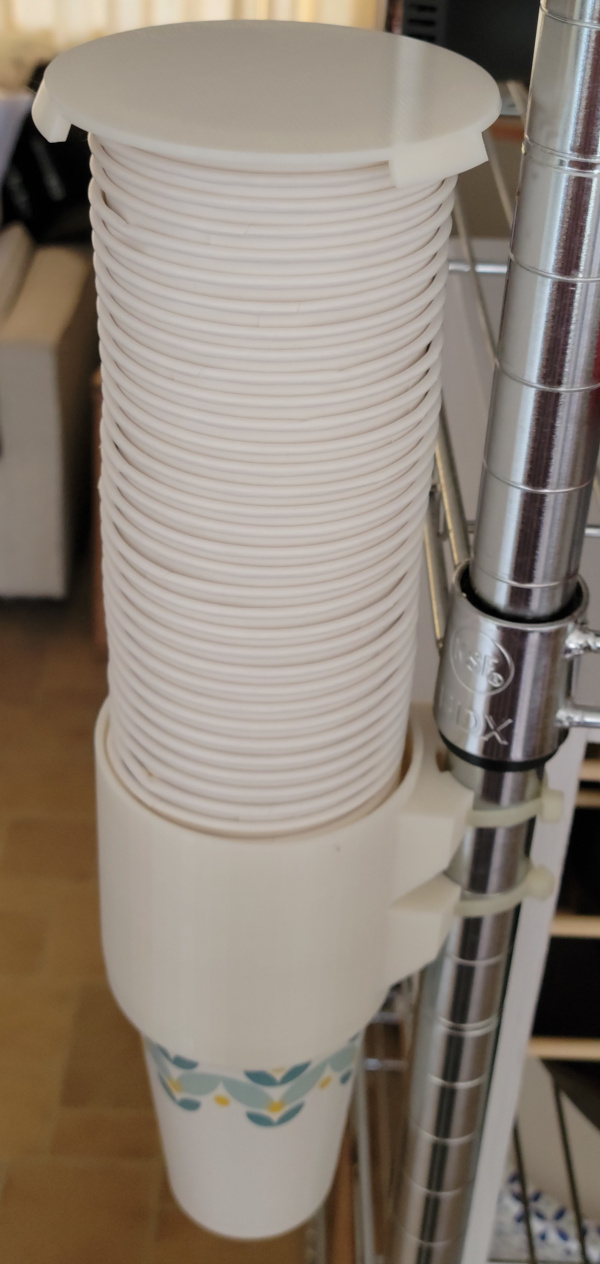

Got tired of rooting through plastic bag of cups, so now I have a cup dispenser that attaches to the post of my wire shelf with wire ties:

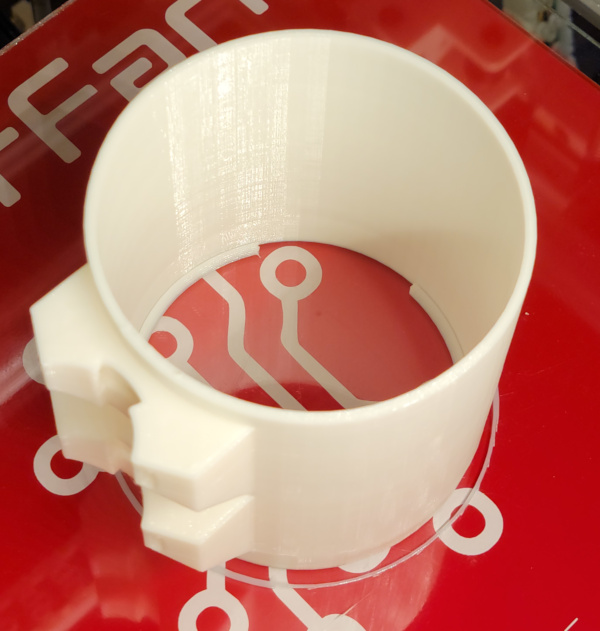

Started by designing and printing the base cylinder with lips in the bottom to hold the cups and mounts on the side to fit the wire shelf post:

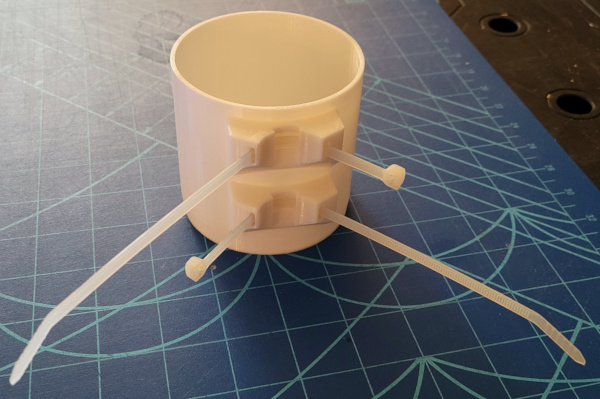

The wire ties go into the holes like so:

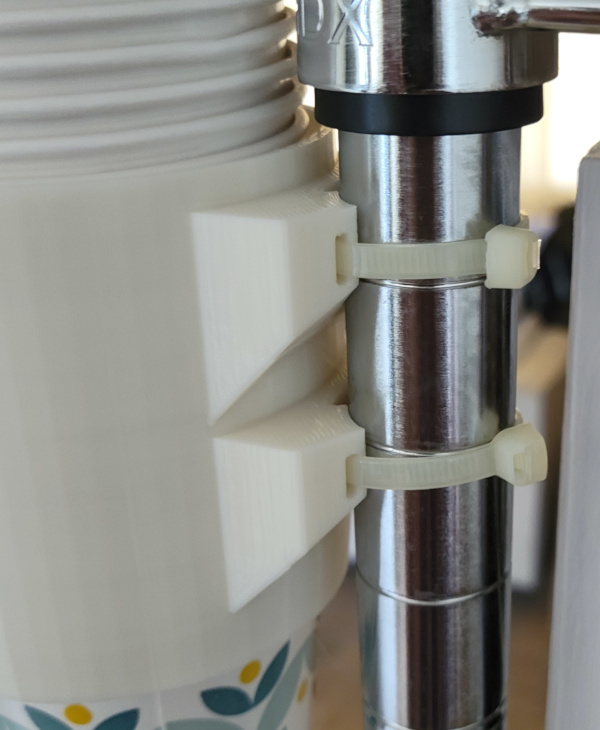

and the base goes on the pole like so:

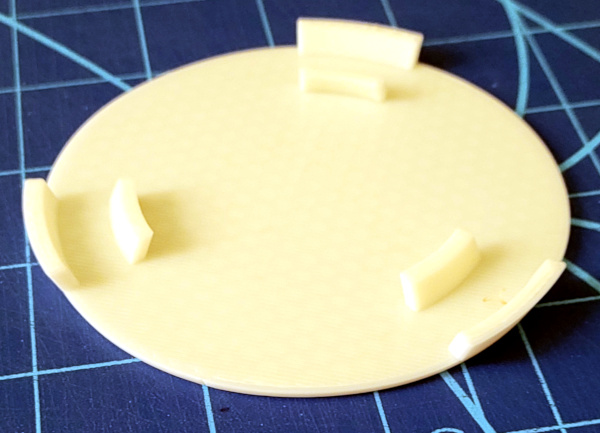

Then I printed a cap to rest on the top cup and keep dust out, with little tabs sticking down to keep it in place:

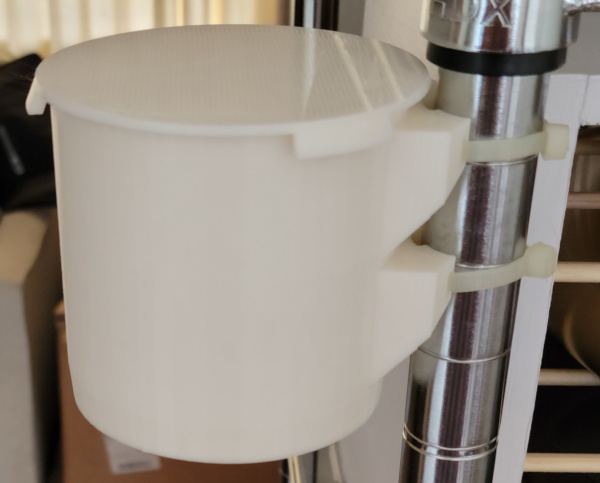

On the outside of the cap other tabs keep it centered on the dispenser once the cup supply gets low enough:

Now I just need to grab a cup and pull down instead of rooting through a plastic bag.
